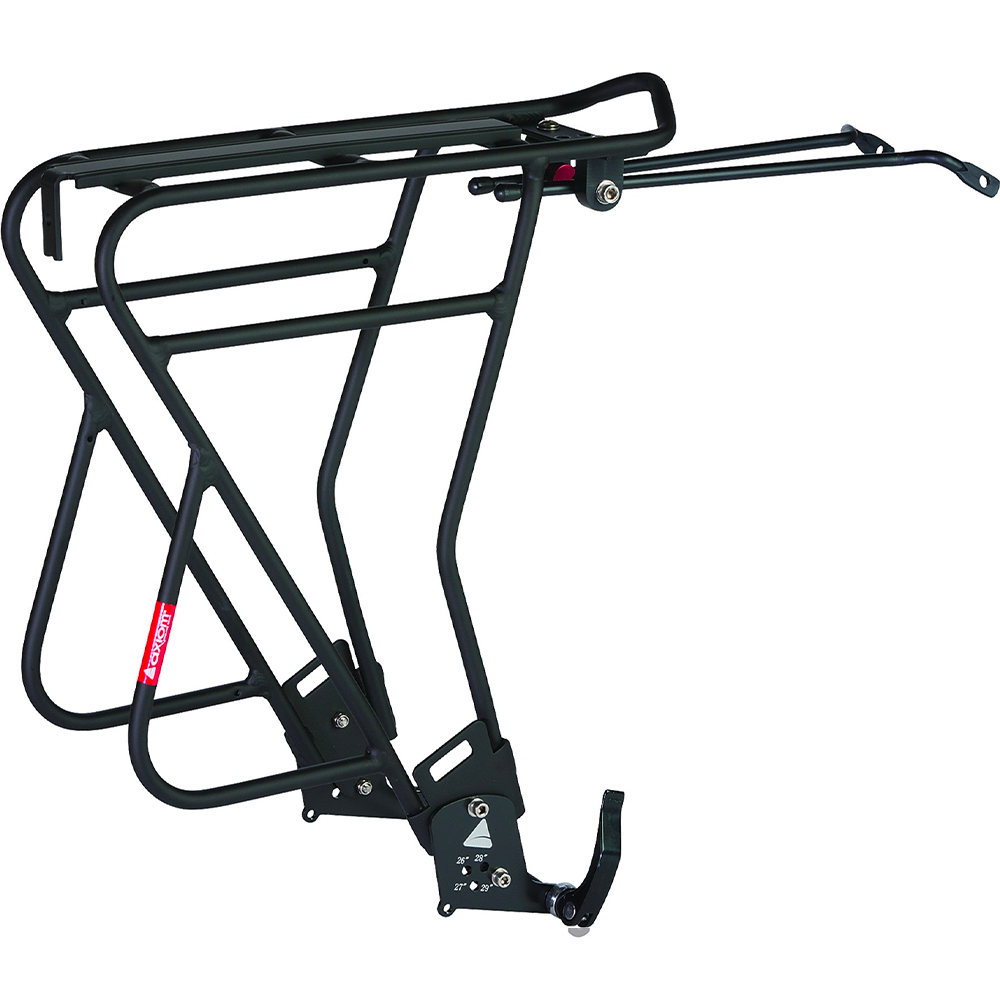

A sturdy, versatile rear rack that offers an almost universal fit: compatible with a full range of wheel sizes, disc brakes, frames without eyelets, road bikes, and traditional designs.Construction:

• Hand-welded, tubular 10.2mm 6061 T6 aluminum.
• High-strength steel modular feet.
• Durable anti-scratch coating.

Mounting System:

• Patent-pending adjustable height and adjustable setback.
• Two sets of patent-pending, adjustable feet mount to a standard quickrelease skewer* (not included) or to traditional eyelets.
• Extra-long (280mm), adjustable Versalock® arms (for frames with eyelets).
• Heavy-duty center bracket can be attached to a brake caliper or fender bridge. *See axiomgear.com for Thru-axle solutions.
• Optional (255120-01~04) 'Trekk Seat Collar' (not included) can be used to add upper eyelets to bikes that have none.

Features:

• Exceptional torsional stiffness.
• Dual horizontal mounting bars allow load height to be tuned.
• Suitable for use with all frame materials, including carbon fibre.
• Attaches to a standard quick-release skewer, or to traditional dropout eyelets.
• Streamlined profile improves aerodynamics and greatly improves handling by keeping your load closer to center.
• Modular sweepback feet maximize heel clearance and accommodate disc brakes, without adding needless extra width that otherwise affects handling.
• 280mm Versalock® arms are long enough to fit even the smallest of bikes.
• Versalock® arms can be DIY bent up to 30 degrees without reducing strength.
• Versalock® brackets can be mounted under or over the rack platform to help overcome mounting challenges found on some bikes.
• Double welded for extra strength and long-term durability.
• Feet feature integrated fender eyelets.
• Reflector/light mount, Frame bolts included
• Lifetime warranty.

Compatibility: 26", 27", 27.5", 28", 29", 700c Stay length: 340 mm to 395 mm / 13.4" x 15.6" (adjustable) Platform size: 346 x 114 mm / 13.6" x 4.5" Weight: 860 g / 1.89 lbs (including hardware) Capacity: 50 kg / 110 lbs
